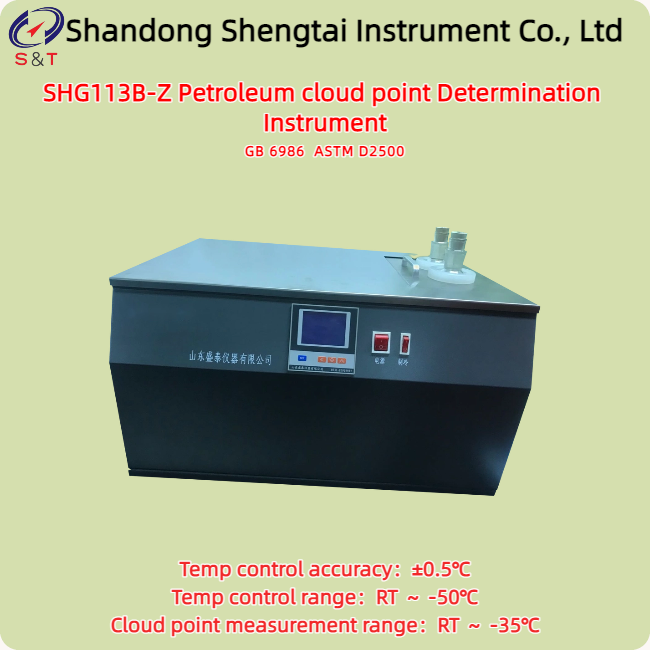

SHG113B-Z Petroleum cloud point Determination Instrument
Standard: GB 6986 ASTM D2500
SHG113B-Z petroleum cloud point tester is designed and manufactured in accordance with the requirements of the Chinese National Standard "Method for Determination of Cloud Point of Petroleum Products (GB 6986-1986)" and is suitable for measuring the cloud point of petroleum products using the method specified in the aforementioned standard.
The cloud point is the temperature, expressed in ℃, at which a clear and clean liquid petroleum product becomes hazy or turbid due to wax crystallization under specified test conditions
Performance Features:
● Utilizes a compression refrigeration mechanism, capable of conducting two sets of experiments simultaneously.
● The output method is a small LCD display with excellent temperature control stability.
● The host is cooled by a metal bath, eliminating the need for medium alcohol replacement, and achieves rapid cooling.
● Imported cascade compressor
Technical Parameters
| Temp control range |
RT ～ -50℃ |
| Cloud point measurement range |
RT ～ -35℃ |
| Temp control accuracy |
±0.5℃ |
| Refrigeration system |
New refrigeration compressor (dual compressor) |
| Ambient temperature |
≤30℃ |
| Relative humidity |
≤85% |
| Working power supply |
AC220V ±10% 50Hz |
| Power Consumption |
No more than 1500W |
| Packaging dimensions |
890*530*480mm |
| Weight |
75kg |
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Package list
| No. |
Name |
Quantity |
Unit |
Note |
| 1 |
Host |
1 |
Set |
|
| 2 |
Cloud point glass test tube |
2 |
Piece |
|
| 3 |
Cloud point thermometer |
2 |
Piece |
|
| 4 |
Power cord |
1 |
Piece |
|
| 5 |
Fuse tube |
1 |
Piece |
|
| 6 |
User Manual |
1 |
Copy |
|
| 7 |
Packing List |
1 |
Copy |
|
| 8 |
Certificate of Conformity Warranty Card |
1 |
Copy |
|
